Tuesday, December 22, 2020

BIOLOGICAL WASTEWATER TREATMENT WITH ACTIVATED-SLUDGE PROCESS – In a simplified flow diagram for biological processes used for wastewater treatment, the influent wastewater (e.g. municipal wastewater) goes through several stages in which different compound are removed out of the wastewater. In the Bar Rack coarse solids are removed, such as sticks, rags, and other debris in untreated wastewater by interception. By use of fine screening even floatable matter and algae are removed. In the Grit Chamber grit is removed consisting of sand, gravel, cinders, or other heavy solid materials that have subsiding velocities or specific gravities substantially greater than those of the organic putrescible solids in wastewater. The Primary Clarifier is a basin where water has a certain retention time where the heavy organic solids can sediment (suspended solids). Efficiently designed and operated primary sedimentation tanks should remove from 50 to 70 percent of the suspended solids and 25 to 40 percent of the BOD. The influent of the aeration tank is mixed with activated sludge and in the Aeration Tank the mixed liquor is aerated. By aerating the mixed liquor the aerobic processes will be stimulated, the growth rate of bacteria will be must faster. Because the bacteria deplete the substrate, flocculation takes place. The soluble substrate becomes a solid biomass. These flocks of biomass will sediment in the Secondary Clarifier. At the end of the process the effluent water is treated to Disinfect it and make it free of disease-causing organisms. Lenntech provides innovative and sustainable solutions for water treatment and liquid separation, focusing on industrial applications.

............................................................................................................................................................................................................................................................................................................................

Biological Wastewater Treatment with Activated-Sludge Process

Lenntech Water Treatment Solutions



The picture below shows a simplified flow diagram for biological processes used for wastewater treatment.


The influent wastewater (e.g. municipal wastewater) goes through several stages in which different compound are removed out of the wastewater.

For more information about the process, please click on one of the process stages.

Simplified flow diagram for a biological wastewater treatment with a activated-sludge process.

In the Bar Rack coarse solids are removed, such as sticks, rags, and other debris in untreated wastewater by interception.

By use of fine screening even floatable matter and algae are removed. (p. 314)

In the Grit Chamber grit is removed consisting of sand, gravel, cinders, or other heavy solid materials that have subsiding velocities or specific gravities substantially greater than those of the organic putrescible solids in wastewater. (p. 384)

The Primary Clarifier is a basin where water has a certain retention time where the heavy organic solids can sediment (suspended solids). (p.384)

Efficiently designed and operated primary sedimentation tanks should remove from 50 to 70 percent of the suspended solids and 25 to 40 percent of the BOD. (p.396)

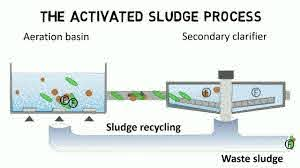

The influent of the aeration tank is mixed with activated sludge and in the Aeration Tank the mixed liquor is aerated.

By aerating the mixed liquor the aerobic processes will be stimulated, the growth rate of bacteria will be must faster.

Because the bacteria deplete the substrate, flocculation takes place.

The soluble substrate becomes a solid biomass. These flocks of biomass will sediment in the Secondary Clarifier.

At the end of the process the effluent water is treated to Disinfect it and make it free of disease-causing organisms.

Lenntech Water Treatment Solutions, established in 1993, is a design and manufacturing company situated in The Netherlands, near the Technical University of Delft.
Lenntech provides innovative and sustainable solutions for water treatment and liquid separation, focusing on industrial applications. With an experienced team of sales, environmental, chemical, mechanical and electrical engineers we are specialized in providing turnkey and customized water purification and membrane separation systems for numerous different industries and applications.
Our wide range of technologies and extended know-how in all water-related sectors will guarantee you a cost-efficient solution that will meet your water quality requirements. Each water and liquid stream are unique, and we prioritize research and development to keep our solutions and products in the front line.
