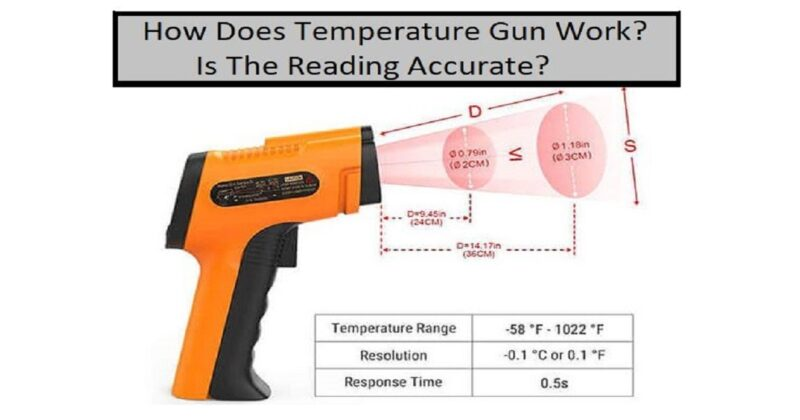

How Does Temperature Gun Work?

Is The Reading Accurate?

Vikas Shukla

engineeringinsider.org



When you think about a thermometer, you probably picture a device with some kind of probe that is placed into the object being measured.

Whether it is a thermometer that you place under your tongue to take your own temperature, or a food thermometer that you push into a piece of meat to make sure it is done, probe-style thermometers have long been a standard.

However, there are plenty of other options on the market today, and infrared thermometers are among the most exciting and useful styles to consider.

Offering ease of use and accurate readings, there is a lot to like about an infrared option.

An infrared thermometer commonly called temperature gun these days, may be called for anytime the surface temperature of an object needs to be determined.

Obviously, since the infrared beam is only bouncing off of the surface, this is not a suitable method of measurement when the interior temperature of an object needs to be found.

There are nearly countless applications, and this technology is already used in a wide range of industries.

Checking the level of heat coming from a piece of equipment, for instance, is a good way to check for trouble that may be occurring on the inside.

If the equipment is hotter than it should be on the surface, there is a good chance that something is going wrong internally.

Considering how many various infrared thermometer models are available today, and how accurate they have become, it is easy to see why they are a popular choice in a number of industries.

A SIMPLE PRINCIPLE

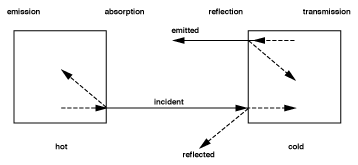

While the technology that makes these thermometers work is certainly complex, the concept itself is rather simple.

Everything that has mass emits some amount of energy, and that energy is emitted in the form of heat.

Since there is heat being emitted by any object, an infrared thermometer can use the difference between the IR rays coming off of the object and the surrounding environment to determine the surface temperature of the object itself.

The IR thermometer works by focusing light that is coming from the object in the form of IR rays and funneling that light into a detector – which is also known as a thermopile.

It is in the thermopile that the IR radiation is turned into heat which is then turned to electricity, which is then measured.

It is ultimately the amount of electricity that is generated by the rays being put out by the object in question that will provide a reading that is displayed on the thermometer.

The reading will be generated in a manner of seconds, meaning an infrared thermometer is a quick way to gather a temperature reading in a number of different scenarios.

WHY INFRARED?

There are a number of reasons why you should consider choosing infrared technology for your temperature reading needs.

When shopping for a thermometer to add to your stable of equipment, consider purchasing a quality infrared thermometer for some of the following reasons.

1. Accuracy. Obviously, you need to be confident that you are getting an accurate reading from your thermometer when you put it to use, and infrared models have a great reputation for accuracy. The technology used in these products is simple yet advanced, and you should be able to rely on the information that you receive – provided that the thermometer is used in the right way.

2. Safety. One of the great things about being able to check on temperature remotely is that you don’t actually need to touch the object in question.

    If you are trying to take the temperature of a particularly hot item, you won’t need to place your hand, or even another piece of equipment, onto the hot surface.

    Just by aiming your IR thermometer at the object you wish to measure, you can get all of the information you need without putting yourself at risk.

3. Contamination prevention. Another benefit to the remote measuring system is avoidance of contamination.

    This is particularly important within the food service world, but it applies in other applications as well.

    Since you don’t need to touch the item that you are measure, you won’t need to worry about contaminating that product with the probe of a thermometer.

    Rather than having to make sure that all of your temperature measuring equipment is properly sterilized prior to each use, you can simply point the IR gun at the item being measured and forget any worries about contamination problems.

4. Durability. You want an Infrared Thermometer that is tough enough to stand up to the demands of the jobsite, workshop or just being bounced around in your toolbox.

    There are certainly more than three advantages to using infrared, but the three listed above are some of the most important.

    Additionally, the cost of this technology has come down in recent years, meaning you can access this great method of temperature measurement for a significantly lower cost than it would have required just a few short years ago.

GETTING IN RANGE

It is important to pick an infrared thermometer that is rated to measure items within the temperature range that will be applicable to your uses.

Every IR unit on the market today is rated for a specific range of temperatures, and it will not be accurate if you are trying to measure items that fall outside of that range.

Therefore, before picking out an infrared thermometer, you are going to need to think carefully about what you will be measuring and the expected temperature ranges for those items.

As an example, you may find one unit that is capable of measuring temperatures from as low as -40F all the way up to 428F while another unit ranges from -4F all the way up to 626F.

Most units will be suitable for covering moderate temperatures, but you need to carefully check the specs on any infrared thermometer that is being purchased for the purpose of measuring extremely cold or extremely hot items.

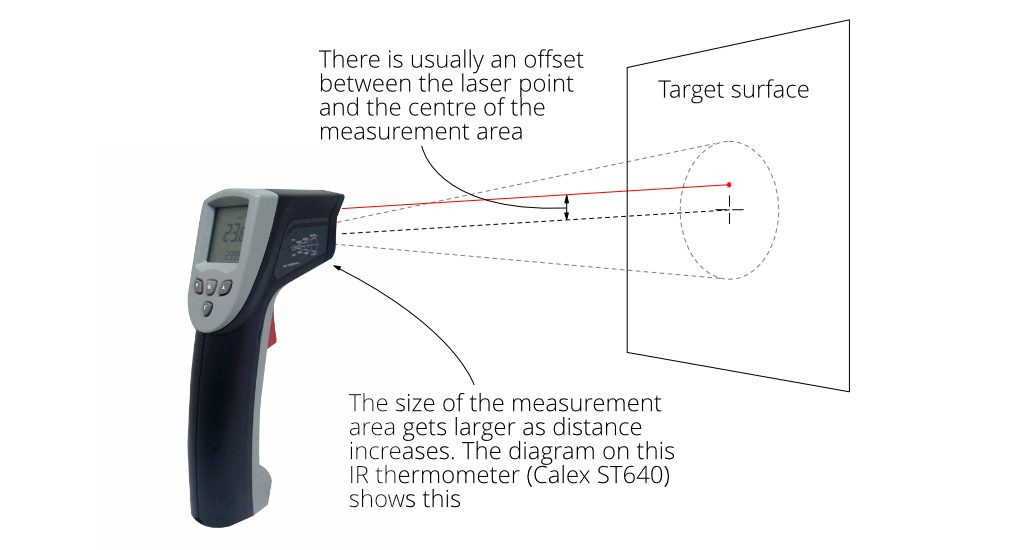

DISTANCE-TO-SPOT RATIO

Another important element of IR thermometers is the distance-to-spot ratio that they offer.

Commonly available ratios include 4:1, 8:1, 30:1, and even 50:1.

What does the distance-to-spot ratio mean?

It refers to the distance you can be from the object that is being measured while still receiving an accurate reading.

So, the bigger the ratio, the farther away you can stand from the target object while still getting a good reading.

For example, with a 30:1 ratio you can be standing 30 inches away from your target and still accurately measure an area of 1 square inch.

To measure that same area with an 8:1, you would need to be standing 8 inches away.

Higher distance-to-spot ratios are usually found on models with very high temperature ranges, allowing you stand a safer distance away from the heat source.

Naturally, this is another element that needs to be factored in when you are picking out an IR thermometer model.

Are you going to be right next to the objects that you are measuring, or will you need to keep your distance for safety reasons?

If you are going to be back a significant distance, make sure the model you pick out is capable of remaining accurate thanks to a large distance-to-spot ratio.

Although infrared thermometers are limited to taking surface temperature readings, they remain a valuable tool that is used by professionals in a variety of industries.

When you are picking out your own IR unit, be sure to pay close attention to both the distance-to-spot ratio, as well as the temperature range that is offered by that model.

Once you do receive your thermometer, read all of the instructions carefully and use the unit in accordance to the manufacturer’s recommendations in order to get the most accurate readings possible.

While not the perfect tool for every temperature measuring job, there is a good chance you will find plenty of occasions to put an IR thermometer to work for you.

Does Temperature Gun Give Accurate Temperature?

Research has shown that, when used correctly, infrared or no-contact thermometers (temperature gun) are just as accurate as oral or rectal thermometers.

No-contact thermometers are popular among pediatricians, as kids often squirm around when trying to get a temperature read, but it also holds true in mass temperature screenings.

The device offers safety to both parties while providing a quick and accurate read.

Of course, when available, an internal thermometer is the gold standard in healthcare.

But due to COVID-19 and the need to quickly mass test, a no-contact thermometer has become the standard.

The operator needs to follow the device’s protocol and it won’t pick up a fever on someone who has taken fever-reducing medication.

But with many establishments now requiring temperature checks, these hand-held thermometers are proving to be safe, quick and accurate while helping to reduce the spread of coronavirus.
